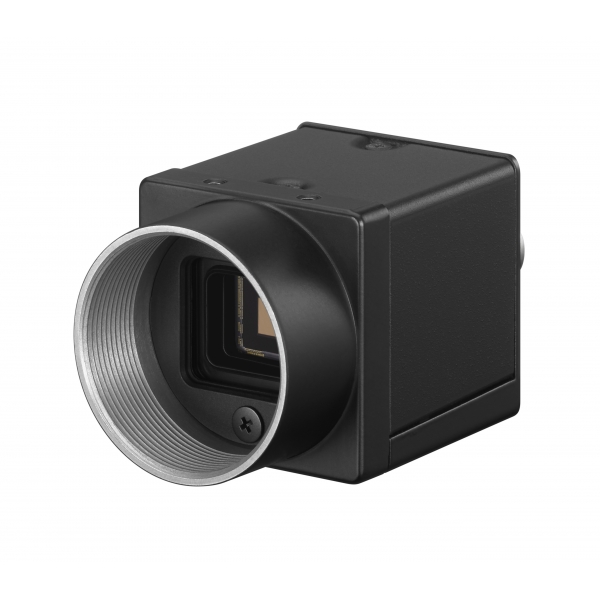

XCG-CG240C
Colour
Image Size2.4 Mega
Image Sensor1/1.2-type CMOS Image sensors with a global shutter function (Pregius)
Number of Effective Pixels (H x V)1,936 × 1,217
Cell Size (H x V)5.86 μm × 5.86 μm
Standard Output Pixels (H x V)1,920 × 1,201
Colour FilteRGB colour mosaic filter
Frame Rate41 fps (8 bit, Mono/Raw) 33 fps (10 bit, Mono/Raw)
Minimum Illuminatio10 l x(Iris: F1.4, Gain: +18dB ,Shutter: 1/30 s)
SensitivityF5.6 (2000 lx, Gain: 0 dB,Shutter: 1/30 s)
SNRMore than 50 dB (Lens close, Gain: 0 dB, 8 bit)
GainAuto,Manual : 0 dB to 18 dB
Shutter SpeedAuto, Manual : 60 to 1/40,000 s
White BalanceManual, One push, Auto
Camera features
Readout ModesNormal, Partial scan
Readout FeaturesLUT (Binarization, Gamma (Arbitrary value settable)), Test pattern
SynchronizationHardware trigger, Software trigger, PTP (IEEE1588)
Trigger ModesOFF (Free run), ON (Edge detection, Trigger width detection), Special trigger (Burst trigger, Bulk trigger, Sequential trigger, Free set sequence)
Userset16
User Memory67 bytes × 16 c
Partial ScanW (Pixel)16 to 1,936
H (Line)16 to 1,216
GPOEXPOSURE/Strobe/Sensor lead out/Trigger through/Pulse generation signal/User defined 1, 2, 3 (Output switching)
Other FeaturesArea gain, Defect correction, Shading correction, Temperature readout, LUT, 3 x 3 filter
Interface
Video Data Outputdigital Raw8, 10, 12 bit(at the time of shipment Raw 8 bit)RGB, YUV422, YUV444
Digital InterfaceGigabit Ethernet (1000BASE-T/100BASE-TX)
Camera SpecificationGigE Vision® Version 2.0/1.5
Digital I/OISO IN (x1), TTL IN/OUT (x2, selectable)
General
Lens MounC mount
Flange Back17.526 mm
Power RequirementDC +12 V (10.5 V to 15.0 V), IEEE802.3af (37 V to 57 V)
Power ConsumptionDC+12V 3.0 W (max.)
IEEE802.3af 3.6 W (max.)
Operating Temperature-5°C to +45°C (23°F to 113°F)
Performance Guarantee Temperatur0°C to 40°C (32°F to 104°F)
Storage Temperature-30°C to +60°C (-22°F to +140°F)
Operating Humidity20% to 80% (no condensation)
Storage Humidity20% to 95% (no condensation)
Vibration Resistance13 G (20 Hz to 200 Hz 20 minutes for each direction -x, y, z )
Shock Resistance73 G
Dimensions (W x H x D)32 × 29 × 42 mm (excluding protrusions) 1 3/16 × 1 3/16 × 1 11/16 inches (excluding protrusion)
MassApprox. 65 g (Approx. 2.3 oz)
MTBF63,172 hours (Approx. 7.2 years)
RegulationsUL60950-1, FCC Class A, CSA C22.2-No.60950-1, IC Class A Digital Device, CE : EN61326 (Class A), AS EMC: EN61326-1, VCCI Class A, KCC,CISPR22/24+IEC61000-3-2/-6
Supplied AccessoriesLens mount cap (1), Operating instructions (1)

Write your review

SNY-XCG-CG240C

SNY-XCG-CG240C

Colour, Globbal shutter, 1/1.2"
No. of effective pixels:2.4Mpixel 1,936 × 1,216
Frame rate: 41 fps
External dimensions: 29 × 29 × 42 mm
