Sony Block, FHD: SNY-FCB-EV7520

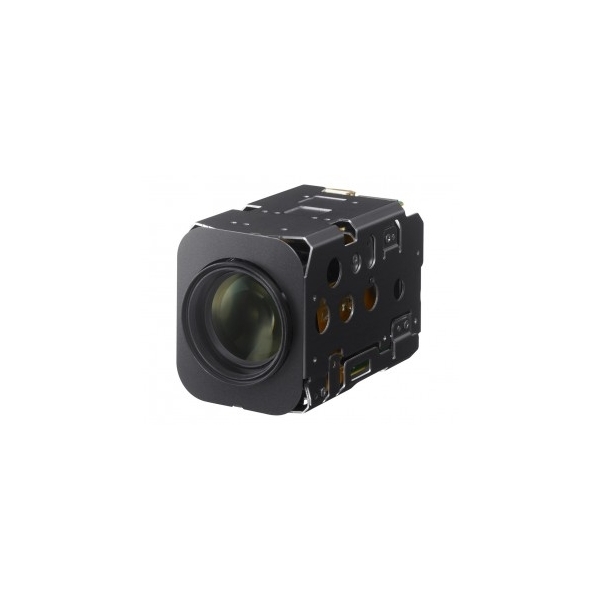

Full-HD Sony block (color zoom camera) Full-HD: SNY-FCB-EV7520

Advanced imaging device for video streaming in OEM applications

The Sony block SNY-FCB-EV7520A is obsolete and so will the SNY-FCB-EV7520 at the end of summer 2023. Alternatively we can offer you the model SNY-FCB-EV9520L

The SNY-FCB-EV9520L is the FHD block evolution of the previous 7520 series, equipped with advanced image processing features already introduced in the SNY-FCB-Ex9500 series, like:
- Super/Super+ image stabilization
- Color image aquisition during ICR ON
- Wide Dynamic Range (Wide-D)

Main functions comparison 7520 - 9520L:

 FCB-EV7520 seriesFCB-EV9520L
Image Sensor1/2.8-type 2M STARVISTM  1/2.8-type 2M STARVISTM 2
Signal System1080p / 60
Minimum Illumination ICR OFF*0.01 lx0.009 lx
Minimum Illumination ICR ON*0.0015 lx0.00008 lx
Optical Zoom30 x30 x
Horizontal Viewing Angle63.7°64.0°
Image StabilizationEISSuper Image Stabilizer (Super/Super+)
Optical Axis Gap Compensation Function-Yes
Spot Forcus/AE/AWE-Yes
ICR ON COLOR-Yes
InterfaceLVDS, CVBSLVDS
Dimensions (W x H x D)50 x 60 x 89.7 mm
* 1/30s, 50%, High sensitivity mode ON

Ask for compatibility at info@iberoptics.com

Key features of the FHD Sony block FCB-EV7520
- sensor: 1/2.8" Exmor R back-illuminated CMOS
- resolution: 2.1MP
- video format: 1080p, 720p
- zoom: 30x optic / 12x digital

Some typical applications are:
- Defense (day camera), surveillance, security
- Photo booths
- Pipe and powerline inspection
- Rescue and safety
- Sport events broadcasting and analysis
- Drones, RPAS and unmanned vehicles in general (UAV, UGV, USV,...)

Specifications and advanced functions of the Full-HD (FHD) Sony block  SNY-FCB-EV7520:

  SNY-FCB-EV7520
Image sensor1/2.8-type Exmor R CMOS
Image sensor (effective pixels)Approx.2.13 Megapixels
Signal system1080p/59.94,1080p/50, 1080p/60, 1080p/30, 1080p/29.97, 1080p/25, 1080i/59.94, 1080i/50, 1080i/60, 1080i/30, 720p/59.94,
720p/50, 720p/60, 720p/30, 720p/29.97, 720p/25, NTSC*1, PAL*1
Minimum illumination
(50%)		High sensitivity modeColour: 0.01 lx (F1.6, AGC on, 1/30s)
Normal modeColour: 0.1 lx (F1.6, AGC on, 1/30s)
S/N ratioMore than 50 dB
GainAuto/Manual; 0 dB to 50.0dB (0 to 28 steps +2 step/ total 15 steps)
Max. Gain Limit 10.7 dB to 50.0 dB (6 to 28 steps +2 step/ total 12 steps)
Shutter speed1/1 s to 1/10,000 s, 22 steps
Sync systemInternal
Exposure controlAuto, Manual, Priority mode (shutter priority & iris priority), Bright, EV compensation, Slow AE
Backlight compensationYes
Aperture control16 steps
White balanceAuto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto), One-push, Manual
Lens30x optical zoom
f = 4.3 mm (wide) to 129.0 mm (tele) F1.6 to F4.7
Digital zoom12x (360x with optical zoom)
Focusing systemAuto (Sensitivity: normal, low), One-push AF, Manual, Interval AF, Zoom Trigger AF, Focus compensation in ICR on
Horizontal viewing angle1080p mode63.7° (wide end) to 2.3° (tele end)
720p mode63.7° (wide end) to 2.3° (tele end)
SD47.8° (wide end) to 1.7° (tele end)
Minimum object distance10 mm (wide end) to 1200 mm (tele end) (Default: 300 mm)
Auto ICRYes
Wide-D*2Yes (120 dB)
Visibility EnhancerYes
De-fogYes
HLCYes
Noise reductionYes (6 steps)
Image stabilizationYes
StableZoomYes
Spherical privacy zone maskingYes
Motion detectionYes
AlarmYes
Slow AE responseYes
Picture effectsE-Flip, Nega Art, Black & White, Mirror image, Colour enhancement
Picture freezeYes
Slow shutterYes
Temperature readoutYes
Title display20 characters/line, max. 11 lines
Camera mode displayYes
Key switch controlNo
Camera operation switchNo
Video outputHDDigital: Y/CB/CR 4:2:2 via LVDS
(Signal format conforms to SMPTE 274/SMPTE 296.)
SDVBS
Camera control interfaceVISCA (CMOS 5 V level)
Baud rate: 9.6 Kbps, 19.2 Kbps, 38.4 Kbps, 115.2 Kbps, Stop bit: 1 bit
Power requirements6.0 V to 12.0 V DC
Power consumption3.2 W (zoom/focus inactive)
4.0 W (zoom/focus active)
Operating temperature-5°C to +60°C (23°F to 140°F)
Storage temperature-20°C to +60°C (-4°F to 140 °F)
Operating humidity20% to 80%, Absolute humidity: 36 g/m3
Storage humidity20% to 95%, Absolute humidity: 36 g/m3
Dimensions (W x H x D)50.0 x 60.0 x 89.7 mm
Mass255 g

*1 Non-standard video format
*2 Wide dynamic range

Here you will find a comparison of the different Sony blocks.

If you need a ruggedized version of the Sony blocks capable to withstand impacts and vibrations, here you have the HarshCam.

HarshCam consists of an internal modification of the corresponding Sony block to make it withstand shocks and vibrations without losing zoom or focus.
It is ideal for defense and security applications and complies with MIL-STD-810 regulations.
