HIK-SC3000 Series Smart Camera / Vision Sensor
Integrated with imaging, processing and communication functions, the SC3000 series or smart cameras has a more compact size and the vision detection tools lead to better performance. Equipped with a new SCMVS for on-site deployment and lower debugging requirements, bringing a more comprehensive and cost-effective choice for visual inspection!

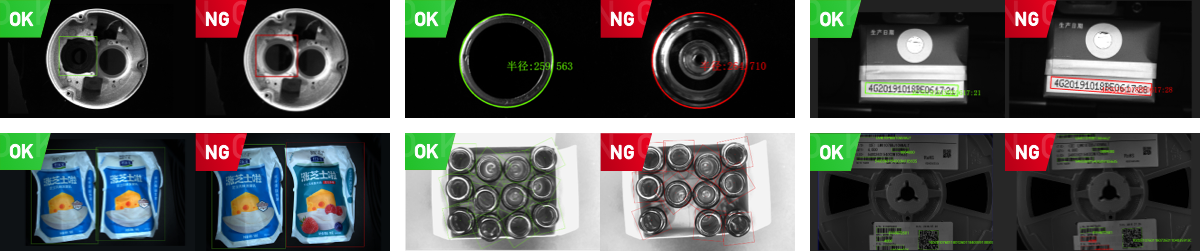

Comprehensive Error-proofing Detection Algorithm.
Inspection solutions such as presence/absence, U/ D, Positioning, counting, etc. are often used for error-proof inspection. More visual inspection tools can provide the optimal solution for parts of different shapes on the production line, making visual application easier.
These smart cameras are thus very appreciated in applications like:
- positioning
- detection of presence / absence
- counting

Features and models HIK-SC3000 Series Vision Sensor:
- Global shutter all of them
- color or monochrome models
- up to 60 fps
- up to 5 MP
- built-in LED illumination
- incl lens cover

Art.	Resolution	FPS	Sensor	Color	LED	Focal
HIK-MV-SC3016M-06M-WBN	1.6MP (1408× 1024)	60fps	IMX273 1/2.9”	Mono	white	6mm
HIK-MV-SC3016M-12M-WBN	1.6MP (1408× 1024)	60fps	IMX273 1/2.9”	Mono	white	12mm
HIK-MV-SC3016M-15M-WBN	1.6MP (1408× 1024)	60fps	IMX273 1/2.9”	Mono	white	15mm
HIK-MV-SC3016C-06M-WBN	1.6MP (1408× 1024)	60fps	IMX273 1/2.9”	Color	white	6mm
HIK-MV-SC3016C-12M-WBN	1.6MP (1408× 1024)	60fps	IMX273 1/2.9”	Color	white	12mm
HIK-MV-SC3016C-15M-WBN	1.6MP (1408× 1024)	60fps	IMX273 1/2.9”	Color	white	15mm
HIK-MV-SC3050M-08M-WBN	5MP (2368 × 1670)	30fps	-	Mono	white	8mm
HIK-MV-SC3050M-12M-WBN	5MP (2368 × 1670)	30fps	-	Mono	white	12mm
HIK-MV-SC3050M-16M-WBN	5MP (2368 × 1670)	30fps	-	Mono	white	16mm

Meet here all the families of smart cameras / vision sensors from HIK Robot

	HIK-SC2000E	HIK-SC3000	HIK-SC7000P
Deep learning	No	Yes	Advanced
Features	Intro family		- Sorting - Target detection - OCR - Code reading
Ilumination	Yes	Yes	Yes/No
Max. Resolution	1.6 MP	5 MP	20MP
Lens	Internal	Internal	Internal/C-mount
Focal lengths	6-15 mm	6-16 mm	12, 16 mm/x
Mono/color	Mono/color	Mono/color	Mono/color
Max. frame rate	60 fps	60 fps	60 fps
Shutter	GS	GS	GS/RS

Type	Feature	HIK-SC2000E	HIK-SC3000	HIK-SC7000P
Existence / Count	Feature matching	Pattern existence / count		y
	Blob analysis	Spot presence / spot count		y
	Edge existence	x	y	y
	Circle existence	x	y	y
	Line existence	x	y	y
	Edge count	x	y	y
Measurement	Brightness analysis	y	y	y
	Contrast measurement	y	y	y
	Greyscale size	x	y	y
	Diameter measurement	x	y	y
	Width measurement	x	y	y
	L2L angle	x	y	y
	P2L measurement	x	y	y
	Line angle	x	y	y
Calibration	N-points	x	y	y
	Calibration board	x	y	y
	Caibration transformation	x	y	y
Recognition	Code	x	y	y
Recognition	Color	x	Comparison / area	y
Deep learning	DL OCR	x	y (GPU)	y (GPU)
	DL character position	x	x	y (GPU)
	DL object detection	x	x	y (GPU)
	DL classification	x	y (GPU)	y (GPU)
Defect detection	Anomaly detection	x	x	y
Logic tools	Logic	Solution results		y
	Branch	x	y	y
	Combination judge	x	x	y
	If module	x	x	y
Results judgement	Position fixture	y	y	y
	Format	Results output		y
	Character comparison	x	*	y

We are the distributors of HIK Robotics in Portugal and Spain
