AUA-UNBP-386.6-0.3-OD8

Item Number7536
Angle of Incidence0 Degrees
Center Wavelength 386.6 nm Nominal
FWHM

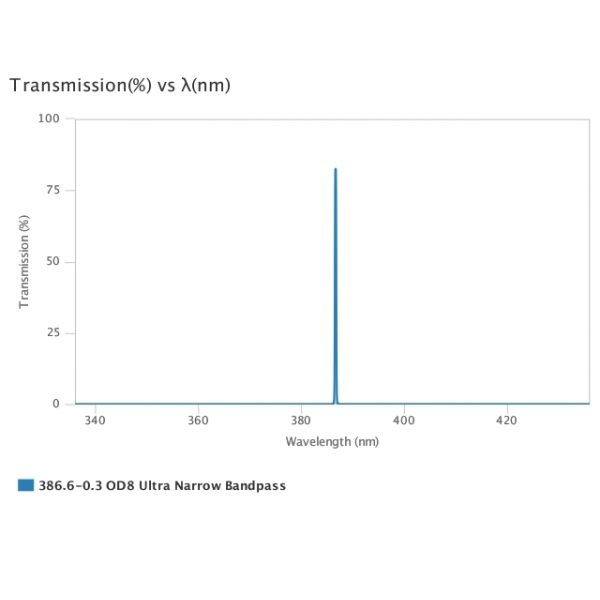

Transmission Band(s)386.6 nm > 75% T Absolute
Blocking Level OD8
Blocking Range(s)*OD8 (By Design): 1064.15 nm, 354.72 nm, 532.08 nm; OD6: 200 to 378 nm, 394 to 1200 nm
Filter DesignMulti-Cavity
Substrate Type Borofloat®
Dimensions25.3 mm Diameter
Filter Thickness2.0 mm
Assembly TypeAnodized Aluminum Ring
Assembly Thickness5.0 mm

Write your review

AUA-UNBP-386.6-0.3-OD8

AUA-UNBP-386.6-0.3-OD8

Alluxa Ultra-Narrow Bandpass Filter, 386.6 nm center wavelength, 0.3 nm FWHM and OD8 blocking. High performance with the narrowest bandwidth response.
