AUA-UNBP-1550.12-4-OD6

Item Number7324
Angle of Incidence0 Degrees
Center Wavelength 1550.12 nm Nominal
FWHM

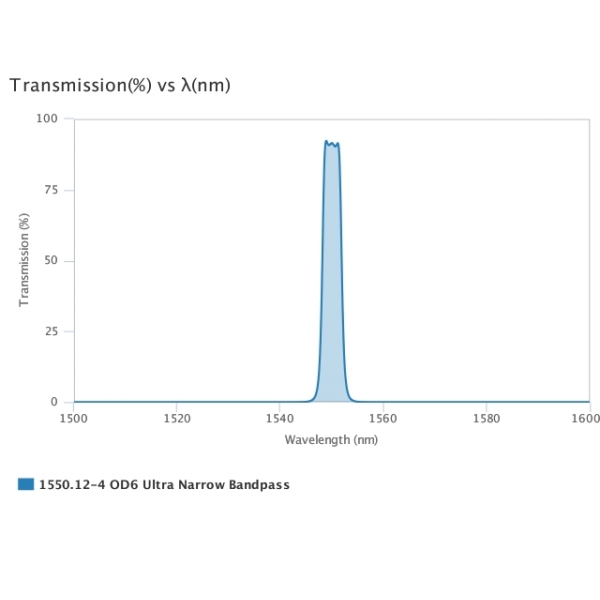

Transmission Band(s)1550.12 nm > 85% T Absolute
Blocking Level OD6
Blocking Range(s)*OD6: 1350 to 1526 nm, 1574 to 1750 nm; OD5: 780 to 1350 nm
Filter DesignMulti-Cavity
Substrate Type Fused Silica
Dimensions34.0 mm Diameter
Filter Thickness2.0 mm
Assembly TypeUnmounted

Write your review

AUA-UNBP-1550.12-4-OD6

AUA-UNBP-1550.12-4-OD6

Alluxa Ultra-Narrow Bandpass Filter, 1550.12 nm center wavelength, 4 nm FWHM and OD6 blocking. High performance with the narrowest bandwidth response.
