AUA-MDB-558-658-usteep

Item Number7181
Angle of Incidence45 Degrees
Cut-On Wavelength 558 nm ± 3.0 nm, 658 nm ± 4.0 nm

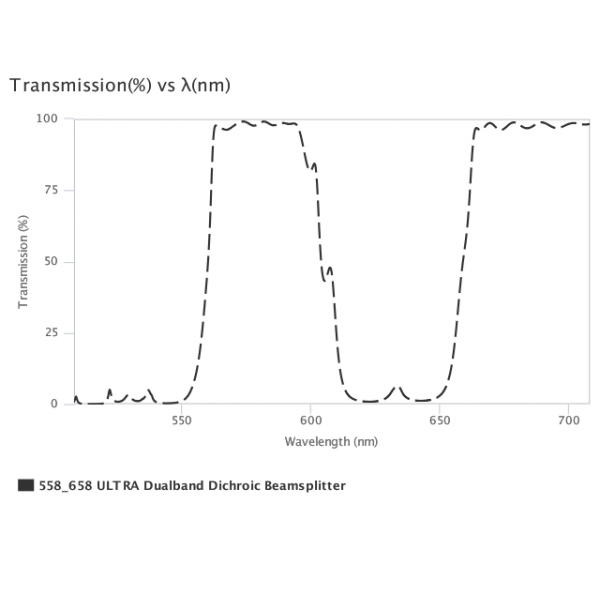

Transmission Band(s)564 to 592 nm > 93% T Average, 665 to 725 nm > 93% T Average
Reflection Band(s)470 to 547 nm > 95% R Average, 615 to 646 nm > 95% R Average
Parallelism
Transmitted Wavefront Error
Substrate Type Fused Silica
Dimensions25.2x35.6 mm
Filter Thickness1.05 mm
Assembly TypeUnmounted

Write your review

AUA-MDB-558-658-usteep

AUA-MDB-558-658-usteep

Alluxa Dualband Dichroic Beamsplitter, 558_658 nm edge wavelength. Get the stepest filtering with Series ULTRA.
