Osela's Industrial Laser System for machine vision, structured light laser, laser generation of lines and patterns ... here you will find high quality laser modules, with special options of homogeneity, straightness, line narrowness or depth of field.

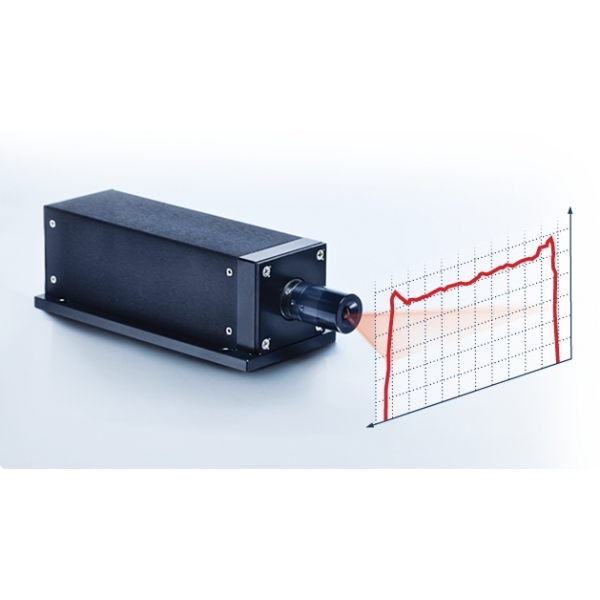

The machine / artificial vision OSE-ILS allow high power in a compact format with TEC and integrated monitoring. The absence of fan and holes expands the life of the laser becuase of the lack of vibrations and possible dust entering the laser
Key features of the StreamLine Laser family for artificial vision:
- External focus without opening the module (no misalignment or dirt or humidity)
- COS cosine correction (fall-off compensation for better line uniformity over the sensor (less power in the center of the line)
- Straightness of line: up to 0.03%
- Uniformity along the line: up to 10%
- 10-25 VDC power supply
- Digital modulation: up to 10KHz (optional analog and power control)
- 3 optical configurations to adapt to the need (line width, depth of field)
- Robust, stable industrial design; protected against ESD, overheating, overvoltage and wrong polarity
Remember that Osela hand polishes the line generating Powell lenses at their factory (unlike the rest of the competitors). Therefore the optical control and quality is the highest one. This, together with the large variety of options make the Osela lasers the best fit for demanding applications.
Applications:
- Line laser
- 2D / 3D laser measurement
- Machine / artificial vision
- Inspection, detection and measurement of structures, roads, geometries, edges, holes, dents, etc.
Basic models of the OSE-ILS laser family
| Art. | Diode Power (output: ~80%) | Notes | Other line optics |
| OSE-ILS-375-200-T-A | 200 mW | | C, D |
| OSE-ILS-405-500-T-A | 500 mW | | C, D |
| OSE-ILS-405-1000-T-A | 1000 mW | May not work at 100% over the full Temp range | C, D |
| OSE-ILS-450-500-T-A | 500 mW | | C, D |
| OSE-ILS-450-1000-T-A | 1000 mW | May not work at 100% over the full Temp range | C, D |
| OSE-ILS-450-1500-T-A | 1500 mW | May not work at 100% over the full Temp range | C, D |
| OSE-ILS-450-3000-T-A | 3000 mW | May not work at 100% over the full Temp range | C, D |
| OSE-ILS-520-500-T-A | 500 mW | | C, D |
| OSE-ILS-520-1000-T-A | 1000 mW | May not work at 100% over the full Temp range | C, D |
| OSE-ILS-642-500-T-A | 500 mW | | C, D |
| OSE-ILS-642-1000-T-A | 1000 mW | May not work at 100% over the full Temp range | C, D |
| OSE-ILS-660-1000-T-A | 1000 mW | | C, D |
| OSE-ILS-670-500-T-A | 500 mW | | C, D |
| OSE-ILS-670-1000-T-A | 1000 mW | May not work at 100% over the full Temp range | C, D |
| OSE-ILS-670-1500-T-A | 1500 mW | May not work at 100% over the full Temp range | C, D |
| OSE-ILS-680-1000-T-A | 1000 mW | | C, D |
| OSE-ILS-690-1000-T-A | 1000 mW | | C, D |
| OSE-ILS-810-1000-T-A | 1000 mW | | C, D |
| OSE-ILS-810-2000-T-A | 2000 mW | | C, D |
| OSE-ILS-810-3000-T-A | 3000 mW | May not work at 100% over the full Temp range | C, D |
| OSE-ILS-810-4000-T-A | 4000 mW | Do not work CW; check max on-time | C, D |
| OSE-ILS-810-8000-T-A | 8000 mW | Do not work CW; check max on-time | C, D |
| OSE-ILS-810-10000-T-A | 10000 mW | Do not work CW; check max on-time | C, D |
Options
| Description | Code | Spec | Availability |
| Modulation Options |
| Reverse modulation | -RS | 0V: no power; 5V: 100% | SL, ILS, FL |
| Reverse TTL | -RT | 0-0.7: no power; 3-5V: 100% | SL, CL, ILS, SLP, FL |
| Focusing options |
| | C | | SL, (ILS, SLP, FL ask) |
| | D | | SL, CL (ILS, FL ask) |
| | H | | SL, CL (ILS, SLP ask) |
| | Q | | SL, CL (ILS, SLP ask) |
| Line generator options |
| Custom fan angle | | 300€ NRE | SL, CL, ILS, SLP, FL |
| 20% uniformity | -U20 | | SL, CL (ask ILS, SLP) |
| 15% uniformity | -U15 | | SL, CL (ask ILS, SLP) |
| 10% uniformity | -U10 | | SL, CL (ask ILS, SLP) |
| Uniformity printout | | Uniformity profile measurement | SL, CL, ILS, SLP, FL |
| 0.05% straightness | -S05 | | SL, ILS, SLP, FL (CL ask) |
| 0.03% straightness | -S03 | | SL, ILS, SLP, FL |
| Cosine correction | -COS | specify the % center-to-extremes | SL, CL, ILS, SLP, FL |
| Factory PreFocus | -PFxxx | Focus at custom distance | SL, CL, ILS, SLP, FL |
| Factory FixFocus | -FFxxx | Focus fixed and glued | SL, CL, ILS, SLP, FL |
| Electronic and connecting options |
| Microcontroller | -RS232; -RS485; -I2C | Select comm. protocol | SL (ILS soon) |
| Separate driver | -SD | | ILS |
| Adjustment pot | -P | Manual power adjustment screw: 20-100% | SL (ILS ask) |
| Custom power cable length | -KCL | Specify length (max 3m; standard 45cm) | SL, CL, ILS, SLP, FL |
| M12 connector | -M12 | 4 pins male | SL, CL, ILS, SLP |
| Specialized optics options |
| Telecentric 10 mm | -10mm | TLP prefix; select fixed focus | SL call (ILS, SLP ask) |
| Telecentric 60 mm | -60mm | TLP prefix; select fixed focus | SL call (ILS, SLP ask) |
| Telecentric 100 mm | -100mm | TLP prefix; select fixed focus | SL call (ILS, SLP ask) |
| Field corrector | -FC | TBD | SL, ILS, SLP |
| Micron focus | M | Specify FA nad WD 25, 50, 75 or 90 mm | SL, ILS, SLP |
| Mechanical options |
| Dust proof IP65 | -IP65 | Incl. factory fixed focus; specify focus distance | SL, ILS, SLP |
Check the different line and machine vision laser modules:
- StreamLine-SL: the most standard line laser for machine vision 2D and 3D, ø19 mm
- CompactLine-CL: mini laser ø10 mm and legth 50 mm
- StreamLine Pulsed-SLP: high power in small StreamLine module (reduced duty cycle)
- Industrial Laser System-ILS: high power machine vision lasers
- FireLine-FL: very high power machine vision lasers
You will probably need laser protection goggles when using these lasers. Check our table of available models (different filter and frame) or contact us directly.
We also offer enclosures and other laser protection and safety measures suitable for these lasers.
