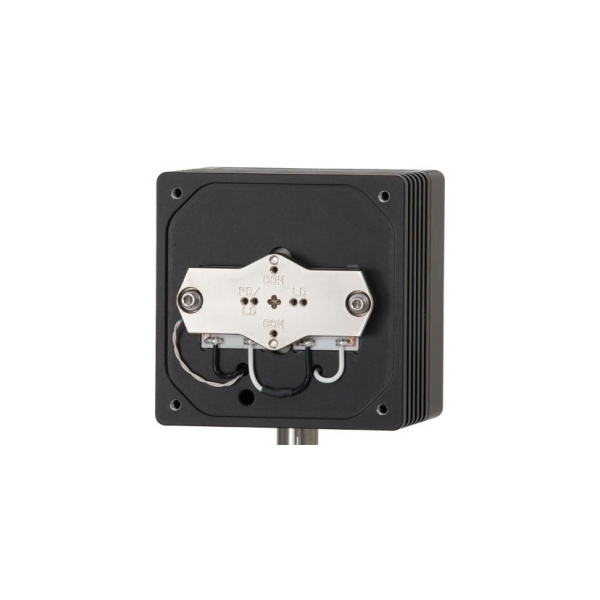

Laser diode mounts

LaserMount: mounts for LED and laser diode control

with or without active TEC and for any package type

We are the distributor of Arroyo Instruments in Portugal and Spain

Chart of models: LaserMount laser and LED diode mounts

Standard
	Art.	TEC	Device	Features	Thermal capacity	Accessories
	203	No	Butterfly	User adjustable wiring	n/a	1220B, 1260B, 1900, 200-C, 200-FAN, 200-TRAY, 5240
	203-1MM	No	Butterfly, 1mm	User adjustable wiring	n/a	1220B, 1260B, 1900, 200-C, 200-FAN, 200-TRAY, 5240
	205	Yes	Butterfly	User adjustable wiring	3W/8W	1220B, 1260B, 1900, 200-C, 200-FAN, 200-TRAY, 5240
	207	Yes	Various	Custom mounting option	12W	1220B, 1260B, 200-C, 200-TRAY, 5240
	207-150B	Yes	Various	+150ºC; Custom mounting options	12W	1220B, 1260B, 200-C, 200-TRAY, 5240
	213	No	DIL	Also electrical connections for mini-DIL	n/a	1220B, 1260B, 200-C, 200-FAN, 200-TRAY, 5240
	215	Yes	DIL	User adjustable wiring	2W/3.5W	1220B, 1260B, 200-C, 200-FAN, 200-TRAY, 5240
	224	Yes	TO-Can	Free space TO-cans	1.3W	1220B, 1260B, 224-C-x, 5240
	226	Yes	LED	STAR LEDs, breadboard hole pattern	n/a	1220B, 1260B, 226-x, 5240
	234B	Yes	TO-Can	Wide temperature range	10W	1220B, 1260B, 234-C-x, 5240
	234B-150	Yes	TO-Can	Wide temperature range, 150ºC	10W	1220B, 1260B, 234-x, 5240
	Micro 5.6	No	TO-5.6	Device clamp, pedestal mount	n/a	1224A/B/C
	Micro 9.0	No	TO-9	Device clamp, pedestal mount	n/a	1224A/B/C

High Power
	Art.	TEC	Device	Features	Thermal capacity	Accessories
	242	Yes	C-Mount	Solder-less quick connections, built-in fan	25W	1220B, 1260B, 1902, 5305
	244	No	HHL	Socketed connection, built-in fan	n/a	1220B, 1260B, 1902, 5305
	246	No	TO-3	Socketed connection, built-in fan	n/a	1220B, 1260B, 1902, 5305
	262	No	Various	Passive cooling for high power device, built-in fan	n/a	1220B, 1228C, 1260B, 260-C, 5305
	264	Yes	Various	Active cooling for high power device, built-in fan	30W	1220B, 1228C, 1260B, 260-C, 5305
	264M-BB-DB9	Yes	Various	264 with metric breadboard cold plate, DB9 connection	30W	1220B, 1260B, 260-C, 5305
	264M-BB-DB9-150	Yes	Various	264 with metric breadboard cold plate, 9W4 connection	30W	1220B, 1260B, 260-C, 5305
	264M-BB-9W4	Yes	Various	264M-BB-DB9, upto 150ºC operation	30W	1220B, 1260B, 260-C, 5305
	264M-BB-9W4-150	Yes	Various	264M-BB-DB9, upto 150ºC operation	30W	1220B, 1260B, 260-C, 5305
	274	Yes	Various	3.2" M3 breadboard cold plate, water cooled	180W	1262B, 5300-10-18, 5305, 5400-15-28
	274-150	Yes	Various	274, upto 150ºC operation	180W	1262B, 5300-10-18, 5305, 5400-15-28
	284-03	Yes	Various	76mm diam M2.5 breadboard cold plate (and custom)	30W	1260B, 284-x, 5300-08-24, 5305
	284-03-150	Yes	Various	284-03, upto 150ºC operation	30W	1260B, 284-x, 5300-08-24, 5305
	286-01	Yes	Various	107mm M3 breadboard cold plate	100W	1262B-17W2, 286-x, 5300-08-24
	286-01-150	Yes	Various	286-01, upto 150ºC operation	100W	1262B-17W2, 286-x, 5300-08-24

Monturas para diodos láser y LED

Si no encuentra la solución a sus necesidades háganoslo saber. No olvide preguntar por los cables de conexión adecuados

We can also provide:
- Combo Source:  diode current driver and temperature (TEC) controller combos
- LaserSource:  diode current drivers
- TECSource:  diode temperature controllers (TEC)
- LaserMount:  laser diode mounts
- MultiSource: multichannel diode current and temperature controllers, also fixture solutions
