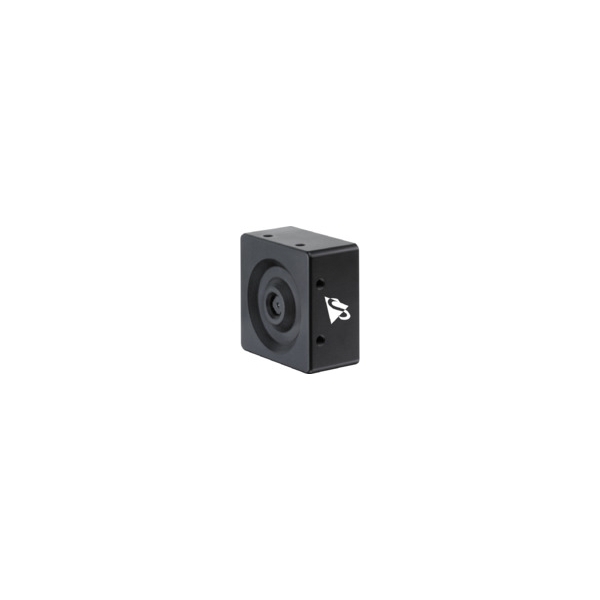

Camara autofocus USB2.0 color

Industrial camera with autofocus for artificial vision and industrial image The Imaging Source USB 2.0 color.

These cameras are perfect for developing artificial vision or industrial imaging applications since they are compatible with numerous accessories such as C / CS mount lenses, protection housings, filters ...

Subject to change
General behavior
Video formats @ frame rate (maximum)	2,592x1,944 (5 MP) MJPG @ 15 fps 1,920x1,080 (2.1 MP) MJPG @ 30 fps 1,280x720 (0.9 MP) MJPG @ 60 fps
Interface (optical)
IR cut filter
Sensor type	CMOS
Shutter	rolling
Format	¹/₄ inch
Pixel size	H: 1.4 µm, V: 1.4 µm
Focal length	3.4 mm
F-Stop	2.8
MOD	10 cm
Focus	One touch
Interface (electrical)
Interface	USB 2.0 (forwards compatible)
Supply voltage	4.5 VDC to 5.5 VDC
Current consumption	approx 250 mA @ 5 VDC
Auto iris control
Trigger
I/Os
Interface (mechanical)
Dimensions	H: 36 mm, W: 36 mm, L: 18 mm
Mass	65 g
Adjustments
Shutter	¹/_5,000 s to 1 s
Gain	ISO 50 dB to ISO 3200 dB
White balance	presets: light bulb, daylight color, fluorescent light, clear sky, cloudy sky, neutral color fluorescent light, light bulb color fluorescent light modes: red adjustment, blue adjustment
Image processing	modes: sharpness, brightness, contrast
Color processing	modes: saturation, hue
Environmental
Temperature (operating)	-5 °C to 55 °C
Temperature (storage)	-20 °C to 60 °C
Humidity (operating)	20 % to 80 % (non-condensing)
Humidity (storage)	20 % to 95 % (non-condensing)
