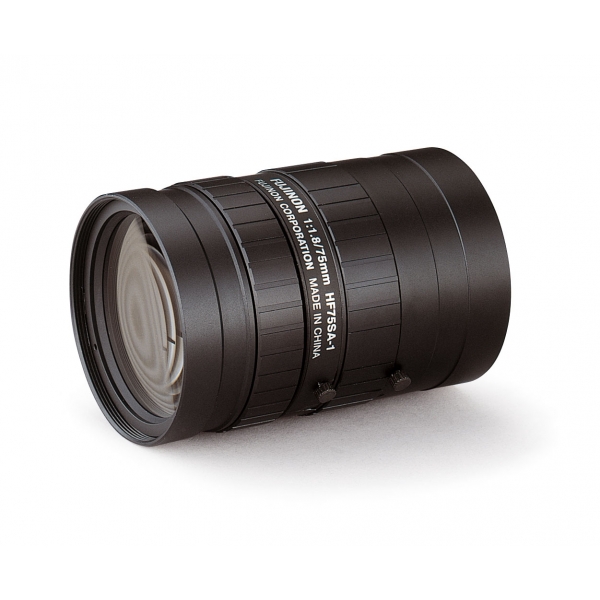

FJN-HF75SA-1

Fixed focal lens for machine vision cameras, Fujinon (Fuji, Fujifilm): 5 MPx

FUJI (Fujinon, Fujifilm) fixed focal lenses are compatible with a large number of industrial imaging or machine vision cameras, as well as multispectral or hyperspectral imaging cameras. Some of the compatible brands are: Sony, The Imaging Source, Silios, NIT, Baumer, Basler, Cognex, Keyence, Dalsa, Teledyne, Flir, Omron, Lucid, Datalogic, IDS, Sick, Jai, Ximea, Hitachi ...

DescriptionFor 2/3" ~ 1/3" cameras
With locking knob for iris and focus
Focal length in mm75
Iris rangeF1.4~F22
Distortion-0.03%
Operation irisManual
Operation focusManual
Object Dimensions at M.O.D. (in mm)2/3":
101 x 76

1/2":
74 x 55

1/3":
55 x 41
Angle of view2/3":
6° 43' x 5° 02'

1/2":
4° 53' x 3° 40'

1/3":
3° 40' x 2° 45'
Minimum object distance (M.O.D.) in m0.9
Focusing range (from front lens) in mlimitless ~ 0.9
MountC
Mass in g305
Filter threadM49 x 0.75

Check out our industrial imaging and computer vision products:

Write your review

FJN-HF75SA-1

FJN-HF75SA-1

Fixed focal lens for artificial vision cameras, Fujinon (Fuji, Fujifilm).

We are Fujinon distributors in Spain and Portugal

  • 5 MP
  • Suitable for 2/3", 1/2" y 1/3" sensors with 5Mpixel
  • Manual Focus
  • Manual Iris
  • Focal Length (mm) 75
  • Iris Range F1. ~ F22
